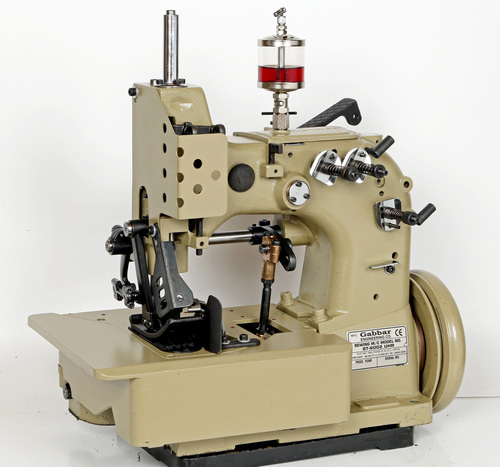

Single Needle Overedging Machine

Single Needle Overedging Machine
Single Needle Overedging Machine
Send Inquiry
Product Code : ST 6002 UHR
Product Description

Under the exemplary leadership and guidance of our expert professionals, we have been able to emerge as a trusted manufacturer and supplier of Single Needle Overedging Machine. It is used for overedgning on containers bags made from woven polypropylene with polypropylene threads. To manufacture this machine, our expert workforce uses finest quality materials and components. The machine comes with pneumatic pressure foot lifting system. We make available this Single Needle Overedging Machine for clients in different specifications as per their requirements.

Features:

  • For even matched seams
  • Rugged construction
  • Maintenance free

ST 602 UHR –

ST 6002 UHR

ST 602 UHR

Single Needle, Double Thread Overedging (Hiracle) Machines with Lower feed & alternating Upper Feed.

Application:

  • For even matched Seams.
  • Overedgning on Containers Bags made from Woven Polypropylene with Polypropylene Threads. (Over Seam width Max. 18 mm.) (Filler cords from top & from below can be Stitched for Sealing Needle punctures).

Technical Details:

Max. speed (R.P.M.) Approx.

1,800

Working speed

Approx.1600 R.P.M. ( Depends on Sewing Material

Overseam width (mm)

Upto 18 mm

Stitch Range (100 mm)

6-13

Sewing Capacity (mm)

Upto 15 mm

Needle Size

UY9853G 430/34, 400/33 (Groz-Beckert)

No. of Needle

One

No. of Thread

Two

Thread Type

Multi Filament, Fabricatred Yarns

Lubrication

Semi Automatic

Motor

1 H.P. 1 or 3 Phase 1425-2850 RPM
