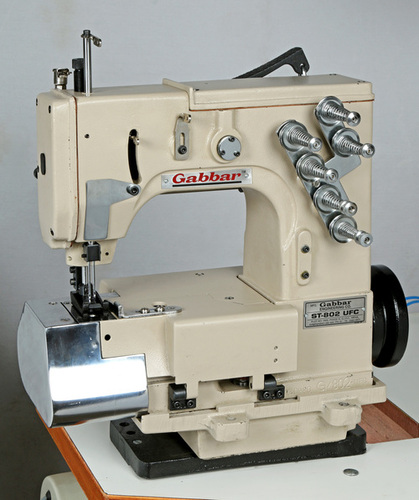

Heavy Duty Jumbo Bag Sewing Machine

Model

AS 800 VM

AS 802 VM

No. of Needle

Single

Double

Seam

Double Thread Chain Stitch

Four Thread Chain Stitch

Speed

800 - 900 Bags / hr

800 - 900 Bags / hr

Stitch Width

5 - 9 mm

5 - 9 mm

Needle

DRX2 - 26 (Orgen)

DRX2 - 26 (Orgen)

Start/ Stop

Photo- switch

Photo- switch

Cutter type

Air cylinder driven guilotine cutter

Air pressure

6 kg/cm2

6 kg/cm2

Air consumption

250 Lit/min

250 Lit/min

Photo cell range

Upto 500mm

Upto 500mm

Infeed system

0.25 H.P. 3 Phase, 4 pole

Drive motor

For sewing head 0.5 H.P. 3 Phase

For conveyor 1 H.P. 3 Phase

For sewing head 0.5 H.P. 3 Phase

For conveyor 1 H.P. 3 Phase

Conveyor

Slat or belt type

Lubrication System

Auto Lubrication pump

Thread

Cotton or Synthetics

Cotton or Synthetics

Conveyor Dimension

2000 mm. x 390 mm. x 275 mm.

2000 mm. x 390 mm. x 275 mm.

Height Adjustable

445 - 725 mm

445 - 725 mm

Net Wt.

325 kgs.

325 kgs.
