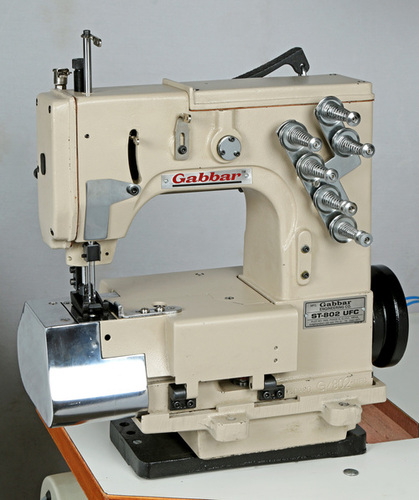

Bag Sewing Machine

Bag Sewing Machine

Product Details:

  • Product Type Bag Sewing Machine
  • General Use yes
  • Efficiency High
  • Click to view more
X

Product Specifications

  • High
  • Bag Sewing Machine
  • yes

Trade Information

  • Ahmedabad, India
  • Telegraphic Transfer (T/T), Cheque, Cash in Advance (CID)
  • Export Packaging (As per suitable in Air, Shipping & Cargo Consignment)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

Technical Specifications

Model

AS 800 VM

AS 802 VM

No. of Needle

Single

Double

Seam

Double Thread Chain Stitch

Four Thread Chain Stitch

Speed

800 - 900 Bags / hr

800 - 900 Bags / hr

Stitch Width

5 - 9 mm

5 - 9 mm

Needle

DRX2 - 26 (Orgen)

DRX2 - 26 (Orgen)

Start/ Stop

Photo- switch

Photo- switch

Cutter type

Air cylinder driven guilotine cutter

Air pressure

6 kg/cm2

6 kg/cm2

Air consumption

250 Lit/min

250 Lit/min

Photo cell range

Upto 500mm

Upto 500mm

Infeed system

0.25 H.P. 3 Phase, 4 pole

Drive motor

For sewing head 0.5 H.P. 3 Phase

For conveyor 1 H.P. 3 Phase

For sewing head 0.5 H.P. 3 Phase

For conveyor 1 H.P. 3 Phase

Conveyor

Slat or belt type

Lubrication System

Auto Lubrication pump

Thread

Cotton or Synthetics

Cotton or Synthetics

Conveyor Dimension

2000 mm. x 390 mm. x 275 mm.

2000 mm. x 390 mm. x 275 mm.

Height Adjustable

445 - 725 mm

445 - 725 mm

Net Wt.

325 kgs.

325 kgs.




GABBAR ENGINEERING CO.
